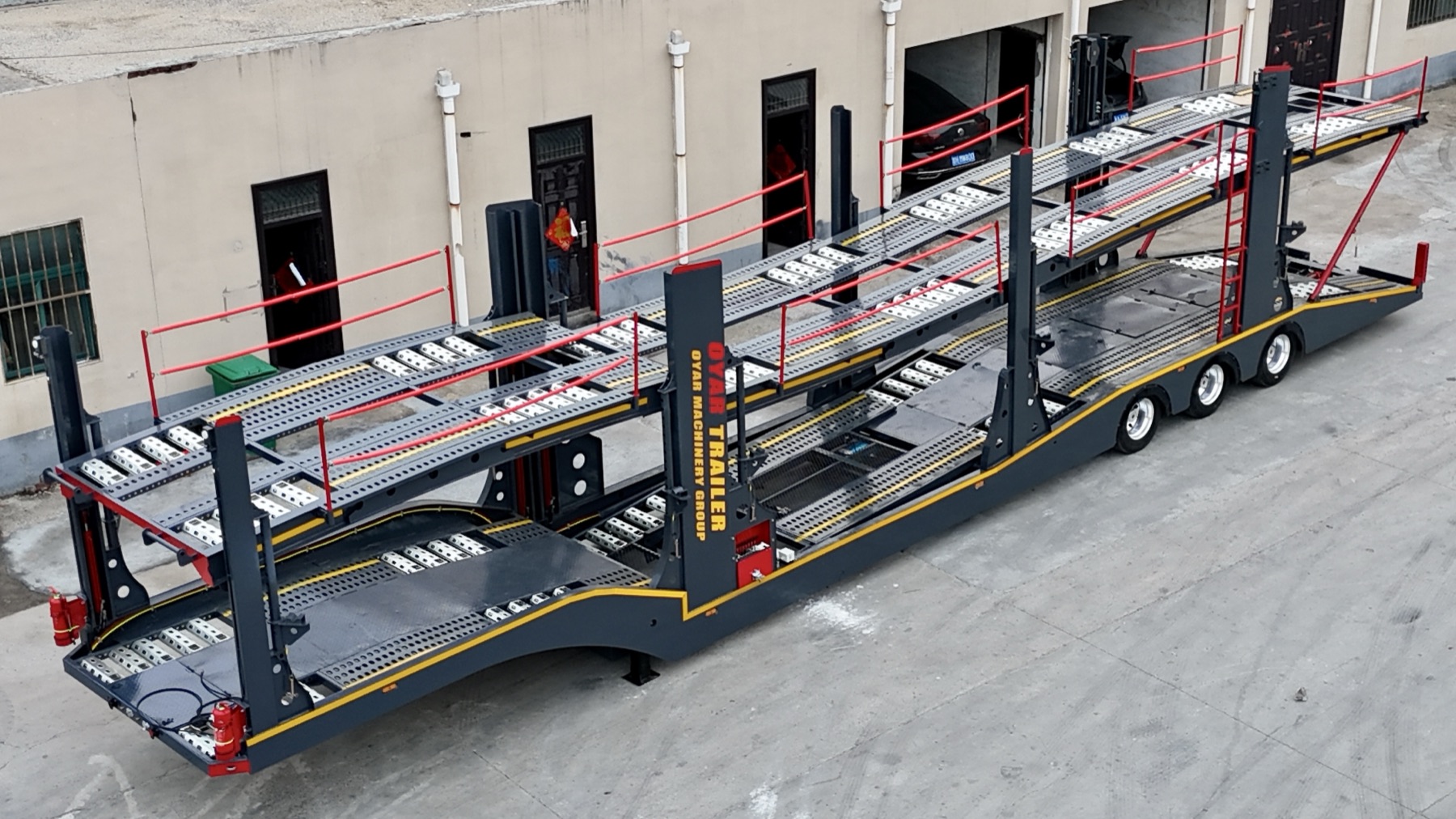

Buyer-specified car carrier configurations for vehicle logistics, import-export operations and dealer programs.
Specification
Commercial fit
A factory quotation is meaningful only when it reflects the cargo, operating route and required configuration. These inputs help avoid a generic price that changes after technical review.
Car-carrier capacity is not a fixed catalogue number. The buyer should list the passenger cars, SUVs, light commercial vehicles or other units expected in the operating cycle, including representative dimensions and the required mixed-load combinations. That matrix is used to review deck geometry, loading order, axle arrangement and the usable loading envelope.
The technical file should show how vehicles enter, move between decks and leave the trailer, together with loading-site gradients, ramp approach, route-clearance limits, turning constraints and the tractor interface. A configuration that loads efficiently at one terminal may be unsuitable for another route or vehicle mix.
Hydraulic or mechanical loading functions, ramps, locks, cylinders, controls, safety points and driver workflow are defined from the approved operating sequence. The quotation should distinguish included systems from options and record the functional checks required before shipment.
Axle count, suspension, braking package, tyres, electrical interface and component brands are selected after the vehicle matrix, route, tractor and destination requirements are known. Unknown values remain open technical items instead of being presented as confirmed specifications.
A car-carrier project can be evaluated as a factory-completed unit, private-label OEM, CKD, SKD or component supply. Branding, paint, markings, packing, local assembly work, inspection responsibility and warranty allocation are documented in the approved contract.
Agreed production checkpoints can include drawing approval, component confirmation, fabrication records, loading-system checks, production photographs and final pre-shipment inspection. Buyer-supplied acceptance criteria should be provided before production so the inspection file matches the commercial promise.
Send company, destination, vehicle matrix, loading combinations, route-clearance limits, loading-site conditions, tractor data, quantity, preferred operating system, component preferences, branding scope and procurement timing. Drawings and final capacity are confirmed only after engineering review.
Build the acceptance request around the vehicle list used for the quotation. Identify which combinations must be demonstrated, which remain drawing reviews and who will sign off unresolved points. Ask for the demonstration record to identify the trailer configuration and vehicle dimensions; a video of a different model does not close an open question about your loading arrangement. Record any departure from the agreed sequence or access requirements and request a response before accepting the configuration. Keep the accepted record with the final drawing so a later vehicle-mix change can be reviewed explicitly.
Send a representative vehicle list with dimensions, wheelbase and shipping weight, plus the intended tractor and route. Identify the loading order and whether the vehicle mix changes between trips. The quotation should reference an agreed loading arrangement rather than promise a fixed vehicle count for every fleet. Ask the supplier to separate trailer equipment, inspection, export preparation and destination-side responsibilities. If the first order is a pilot, record the acceptance criteria and which observations must be closed before repeating the specification.
Before shipment, ask for a numbered list of removable ramps, wheel stops, securing equipment and controls included in the agreed order. Link each item to the trailer configuration and record whether it travels fitted, secured on the trailer or in a separate package. Do not infer that equipment shown in a demonstration video is included in the price. The receiving team should be able to reconcile the package numbers with the packing list and report a missing item without guessing its name. Keep any agreed spare parts separate from the equipment required for the first loading operation. Request the relevant operating information for the supplied configuration before arranging the handover.
Production is based in Jinan, China. Projects can be configured from 12 to 24 metres in length with custom height to the approved specification. MOQ starts from 3 units, and typical production time is approximately 3 weeks after technical and commercial approval.
Axles, suspension, brakes and other components can use Ultima/OEM Chinese solutions or established brands. Every model can be evaluated as a complete trailer, private-label OEM, CKD, SKD or component supply. Agreed inspection points, production photos and final pre-shipment inspection are documented.
Factory-completed units carry a 12-month warranty on main assemblies. Locally assembled projects do not carry a blanket factory warranty on the finished unit; component and assembly responsibilities are defined in the contract. Certificate documents are available for review and confirmed per destination. Freight and vessel arrangements can be coordinated with logistics partners.
Main export models
Configured around vehicle mix, loading method and route
Quote to specification
For containers, steel, construction materials and general freight
Quote to specification
Fixed or configurable chassis for port and intermodal work
Quote to specification
For machinery, project cargo and heavy-haul operations
Quote to specificationFAQ
It can be studied, but deck geometry, axle layout and loading sequence must be reviewed against the actual vehicle mix.
No. Capacity depends on the approved vehicle mix, dimensions, deck geometry, route envelope and loading sequence.
The choice should follow the operating sequence, maintenance preference, loading-site conditions and required controls rather than a generic catalogue option.
Yes. Branding, paint, plates and document language can be included once the approved OEM scope is defined.
It can be evaluated when the model, local assembly capability, tooling, packing, inspection responsibility and warranty allocation are documented.
Route-clearance limits, loading cycle, tractor interface, vehicle matrix, loading-site geometry and port or inland operating context help avoid a generic configuration.
MOQ starts from 3 units. Typical production is approximately 3 weeks after technical and commercial approval. Factory-completed units carry a 12-month warranty on main assemblies; shipping time is separate.
Provide representative vehicle combinations and the most restrictive cases. Review the loading arrangement with the factory; a headline vehicle count is not a universal capacity commitment.
